Figure 1: Circadian expression of the Rev-Luc transgene in mice by bioluminescence imaging.

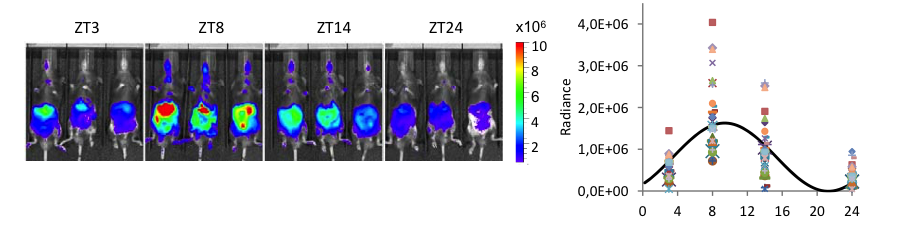

Figure 1: Circadian expression of the Rev-Luc transgene in mice by bioluminescence imaging. Left, representative luminescent imaging of the same anesthetized Rev-Luc reporter transgenic mice over time for the ventral and dorsal faces. Right, quantitative bioluminescence radiance as a function of zeitgeber time for ventral (n=34) and dorsal (n=15) expositions. The fitted dark line represents the mean cosine wave of best fit with a 24 h period. (Canaple et al, Unpublished)
